Online Water quality analyzer Instrument Series
Instrument Selection - Main Unit

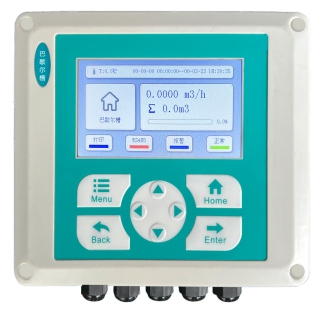

Screen Size: 4.3-inch LCD color screen display;
Casing Material: ABS;

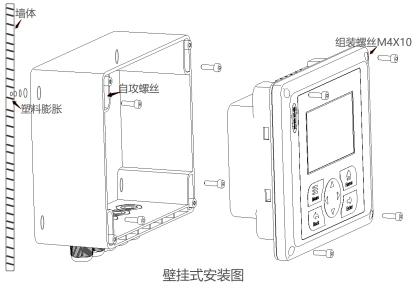

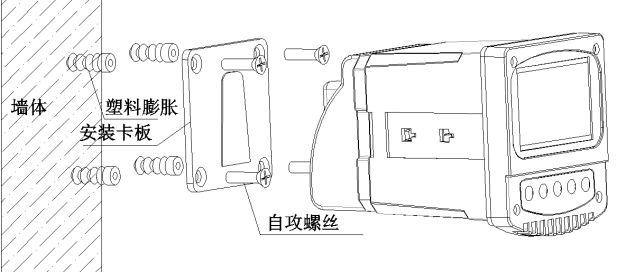

Installation Method: Wall-mounted/panel-mounted;

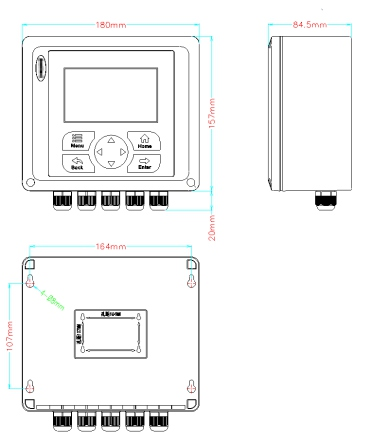

Instrument Dimensions: 180x157x84.5mm;
Opening Size: 138*138mm;
Power Supply: 220VAC/24VDC;
Power Consumption: 3W;
Output Method: 2-channel 4-20mA, RS485, RS232, switch output, cleaning contacts, etc.
Power Supply Range: AC220V or DC24V;
Functions: Supports data acquisition, wireless transmission, and mini printer;
Data Functions: Instrument log, historical data, running time, MTBF, etc.

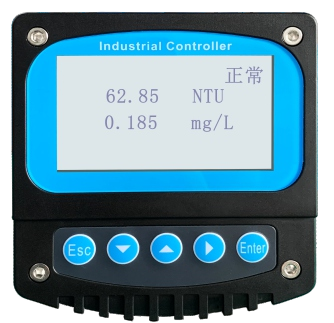

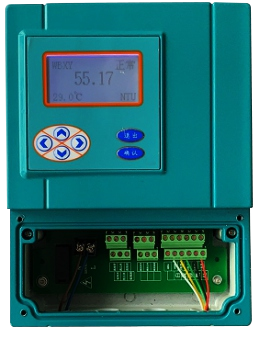

Screen Size: 3.2-inch LCD display;
Casing Material: ABS;

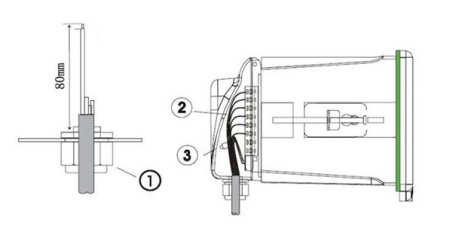

Installation Method: Wall-mounted/Panel-mounted;

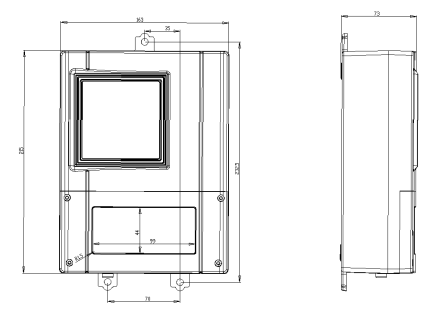

Dimensions: 98*107*140mm;
Aperture Size: 92*92mm (Panel-mounted);
Power: 3W;
Power Supply: 220VAC/24VDC;

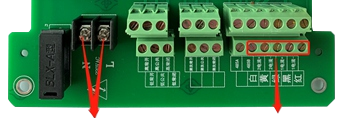

Output Signals: 2-channel 4-20mA, RS485, switch input, cleaning contacts, etc.
