Digital display pressure controller series
Digital display pressure controller
Battery-powered digital display pressure controller
Product Overview
This series of pressure gauges are high-precision intelligent pressure instruments integrating pressure measurement, display, and control. They feature simple operation, high performance, high control accuracy, and long service life.
Product Applications
This series of products can achieve low-pressure stop and high-pressure start or low-pressure start and high-pressure stop control functions. The controller’s pressure range is fully adjustable. It features reverse control, delayed output, error zeroing, free unit switching, leakage protection, password protection, and automatic pressure detection, among other functions. It is widely used in hydropower, water supply, steel, petroleum, chemical, medical machinery, hydraulic equipment, and automated machinery applications.
Structural Principle
This product features an electronic structure, employing an oil-filled piezoresistive pressure sensor at the front end. It is converted from a high-precision A/D converter, processed by a processor, displayed on-site, and outputs two digital signals, one analog signal, and one RS485 signal.
Specifications

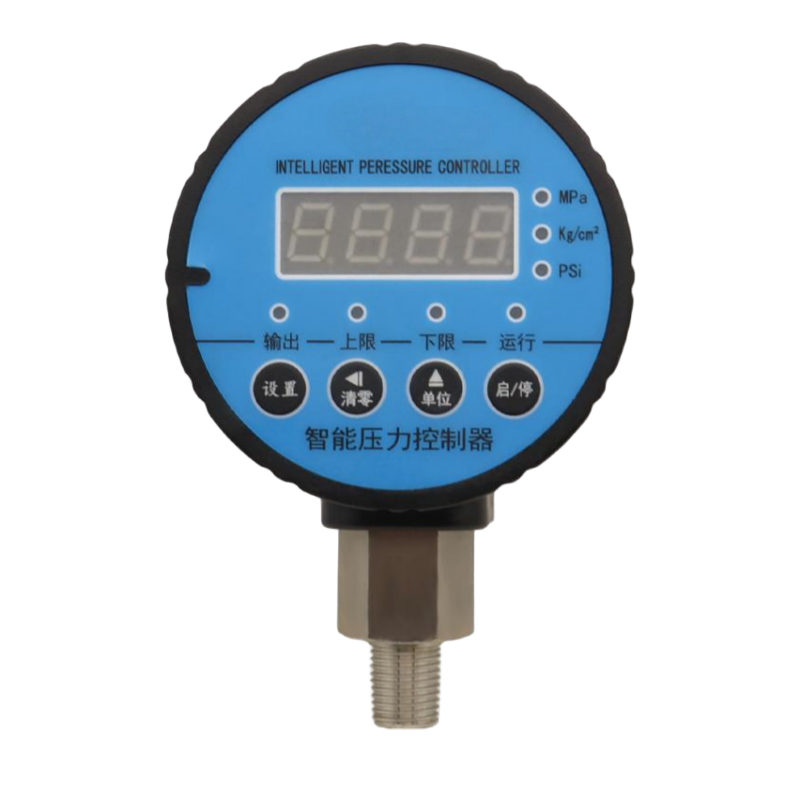

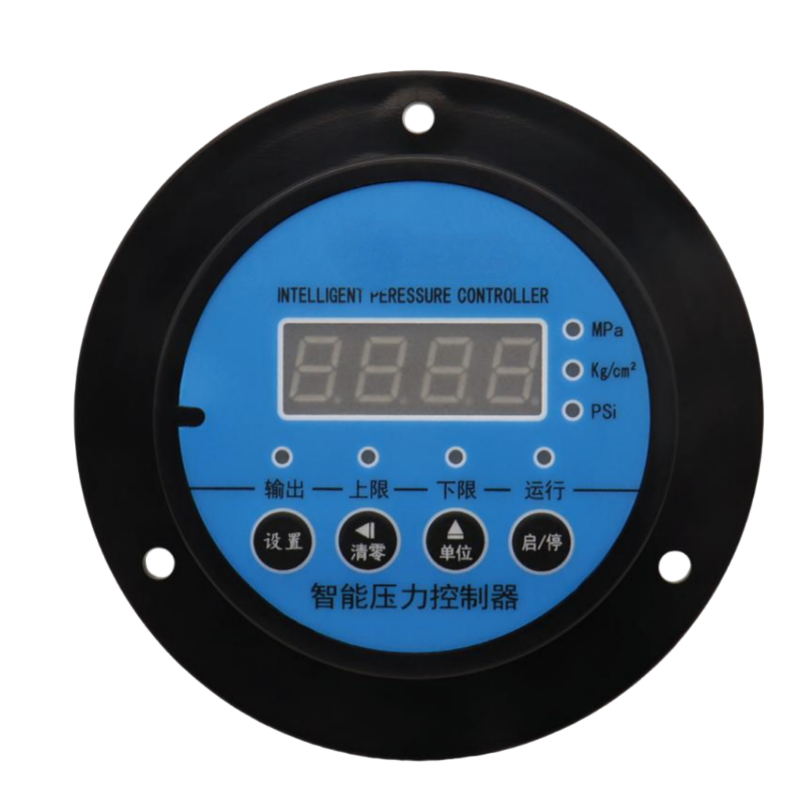

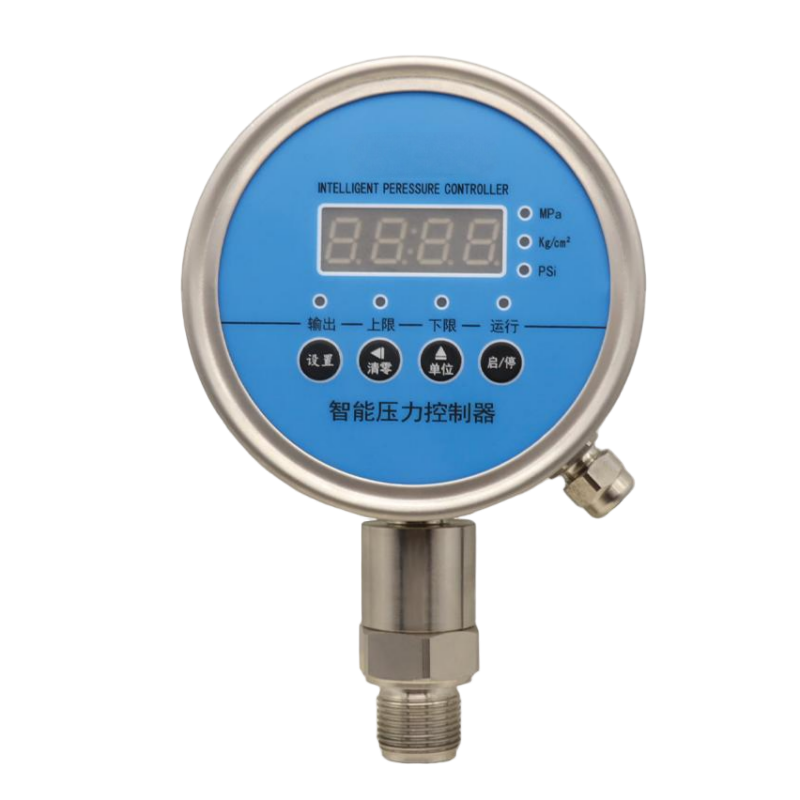

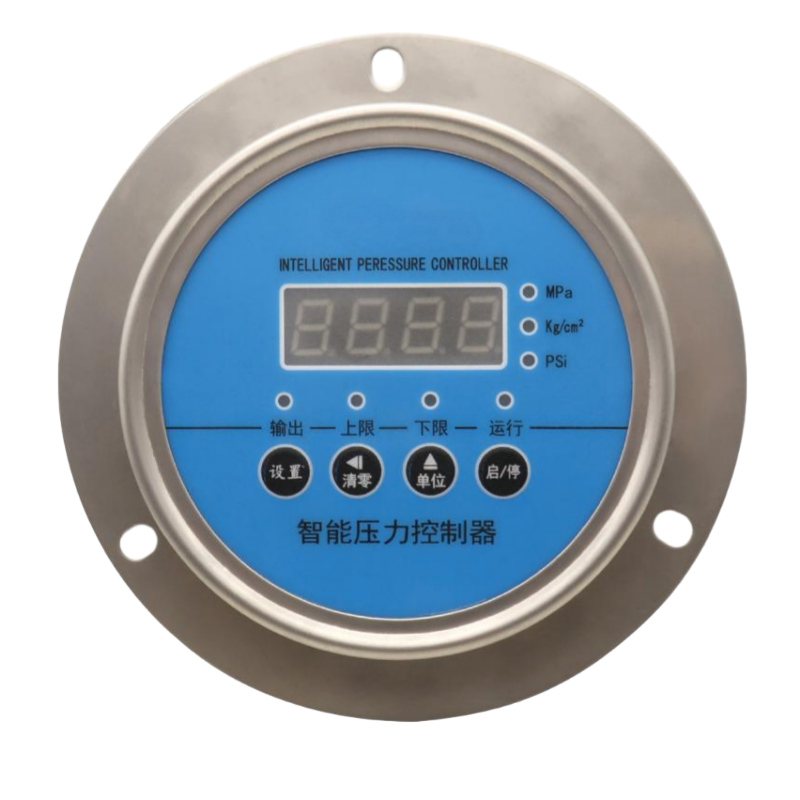

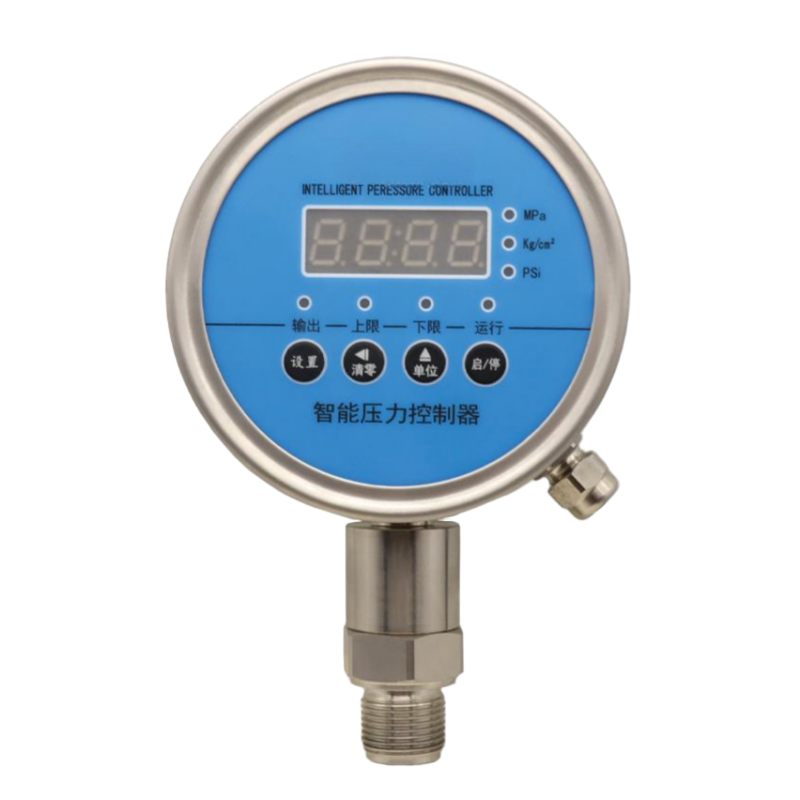

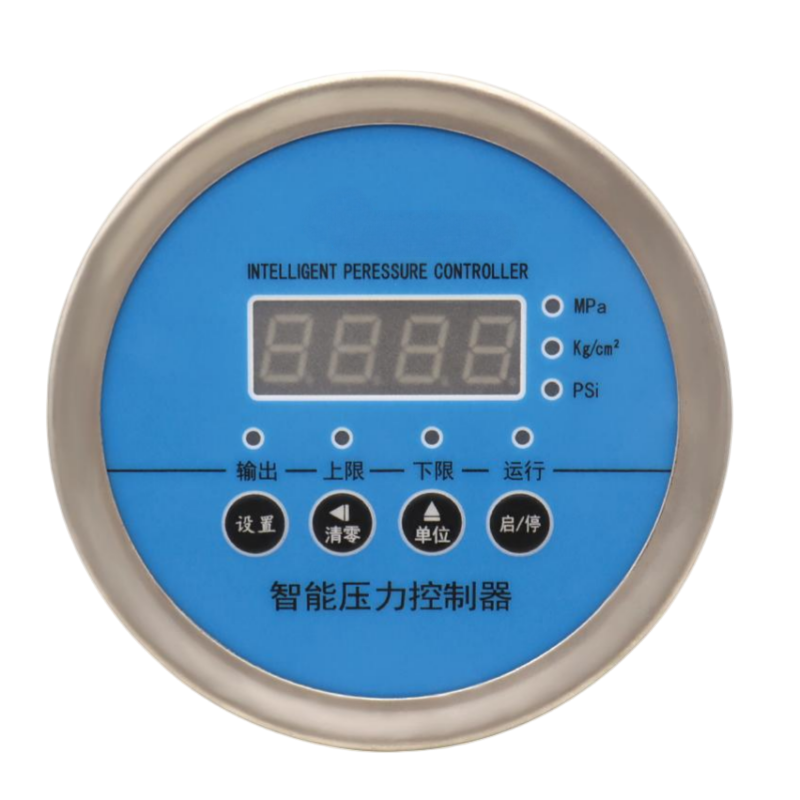

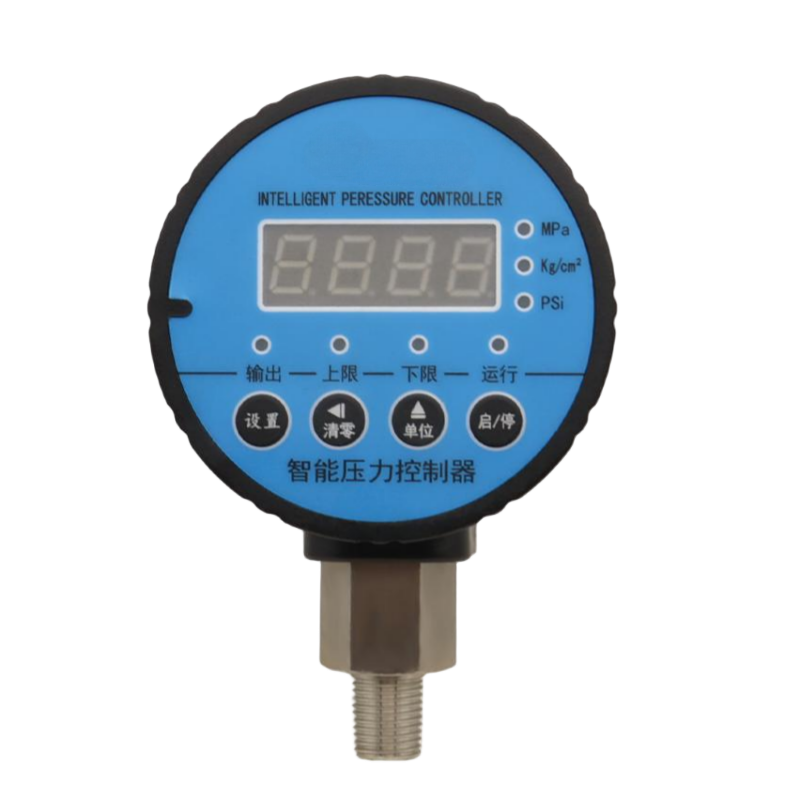

Product Name: Intelligent Digital Display Pressure Controller (Single Relay/Dual Relay)
Overload Pressure: 150%
Accuracy Class: Class 1/0.5
Measuring Range: 0-60Mpa
Contact Capacity: 380V/3A, 220V/5A, 24V/5A
Mounting Connectors: M20*1.5, M14*1.5, G1/2, G1/4, PT1/4, etc.

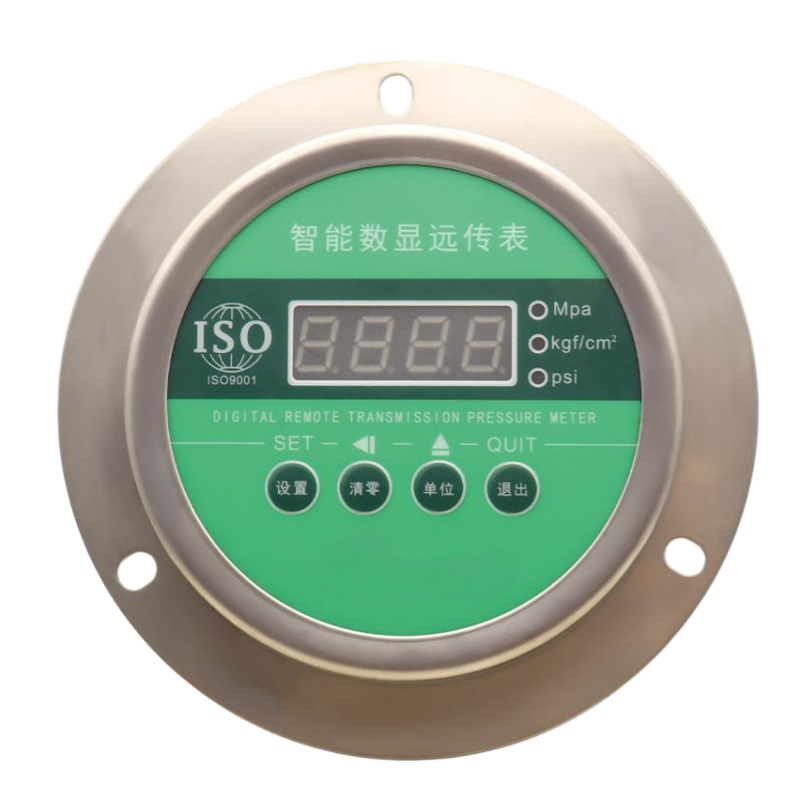

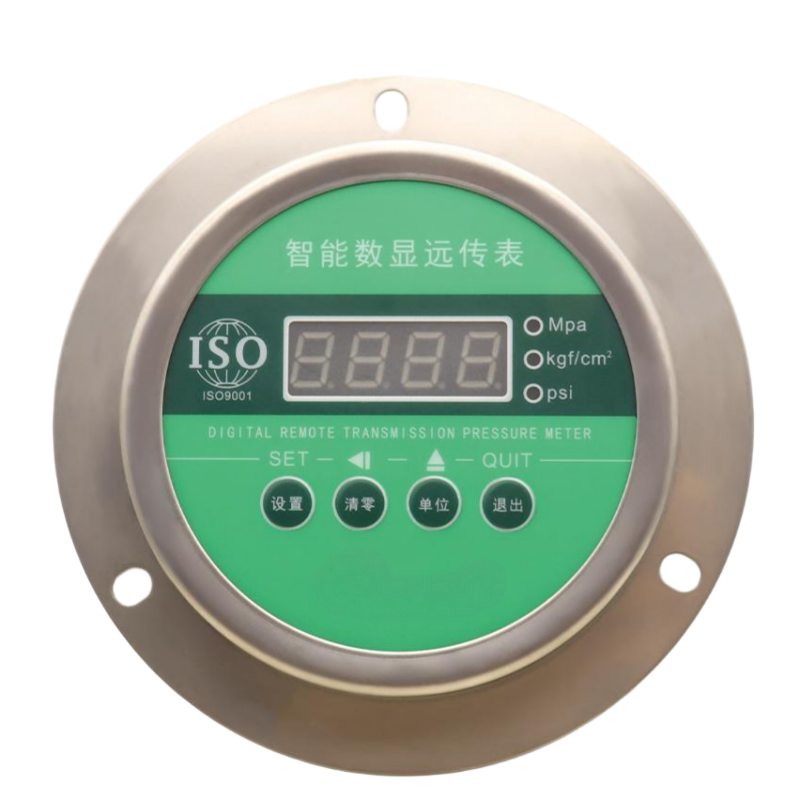

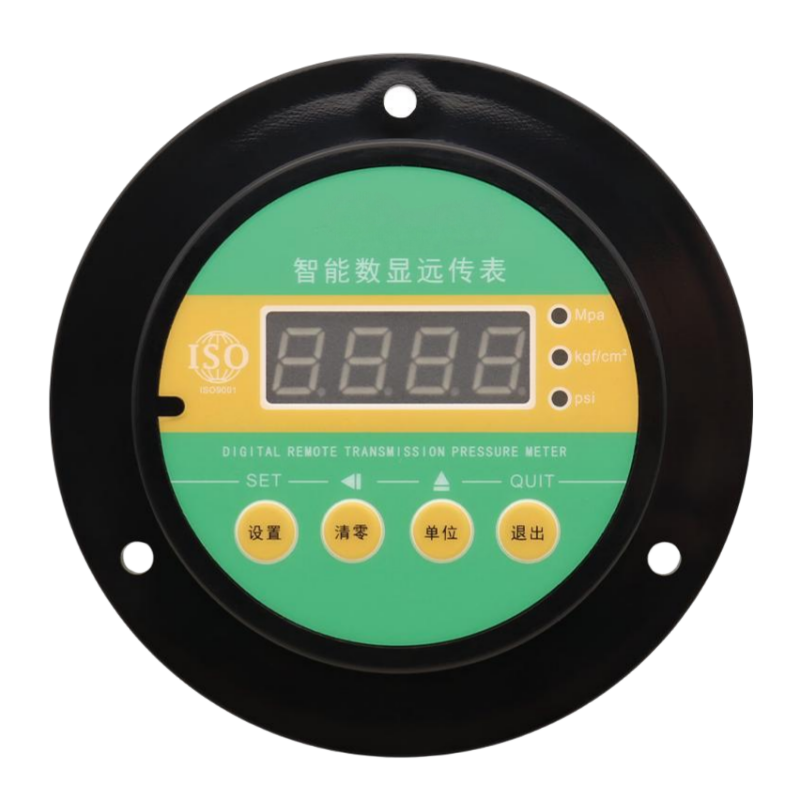

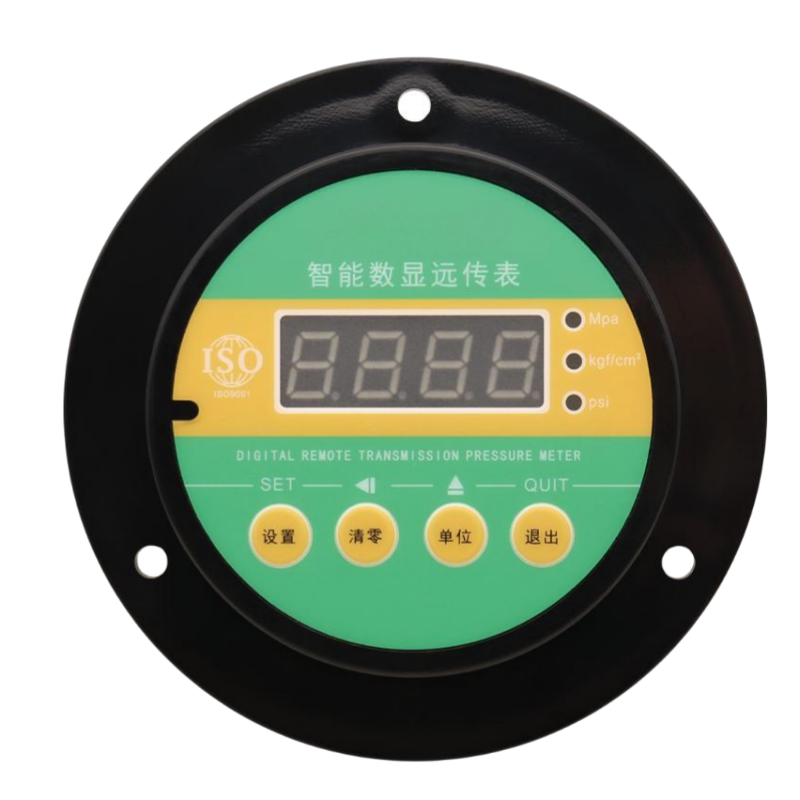

Product Name: Intelligent Digital Display Remote Transmission Meter (RS485)
Overload Pressure: 150%
Accuracy Class: 1.0
Measuring Range: 0~60Mpa Operating
Voltage: DC24V
Mounting Connectors: M20*1.5, M14*1.5, G1/2, G1/4, PT1/4, etc.
