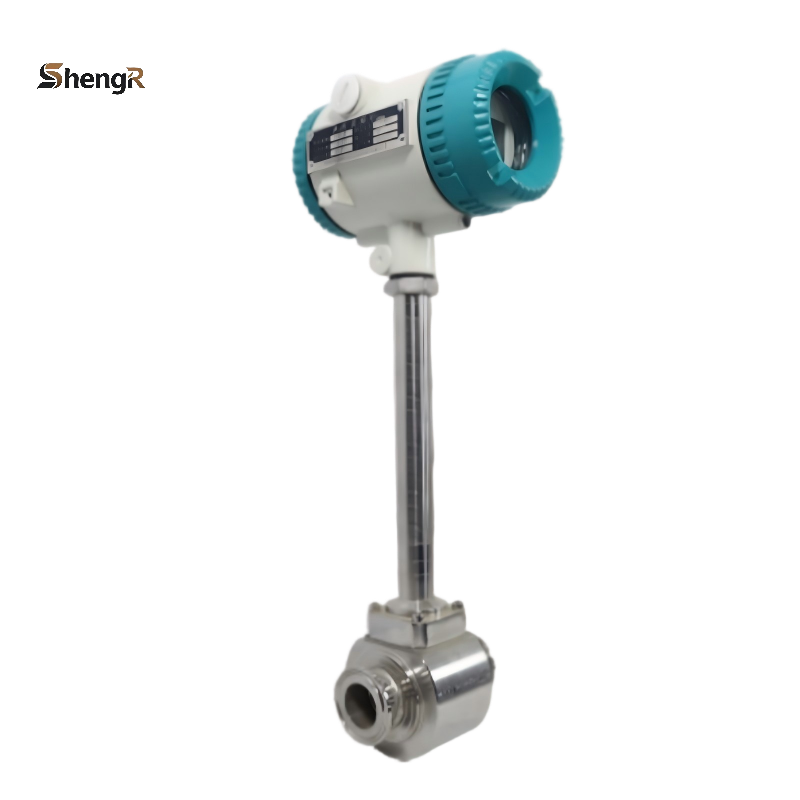

Product Description
Vortex flow meter is developed according to the principle of Karman vortex, and is used to measure the volume flow of gas, steam or liquid, and the volume flow or mass flow of standard conditions. The differential pressure technology used, combined with isolation, shielding, filtering and other measures, overcomes the problems of poor shock resistance and small signal data disorder of similar products, and adopts the sensor packaging technology and protective measures to ensure the reliability of the product.
Features
- Small pressure loss, large measuring range and high precision.
- Not affected by fluid density, pressure, temperature, viscosity, etc.
- No moving mechanical parts, high reliability and low maintenance.
- Instrument parameters can be stable for a long time.
- Adopts piezoelectric stress sensor, which has high reliability and can work in the working temperature range of -20℃～+250℃.
- Analog standard signals and digital pulse signal outputs, which are easy to use with digital systems such as computers.
Technical Parameter
Measuring Medium:Liquid, gas, steam (single-phase medium or can be considered as a single-phase medium); When the dryness of saturated steam is ≥85%, it can be considered as a single-phase medium
Medium Temperature: 40℃～250℃ (optional 350℃)
Medium Pressure:1.6Mpa; 2.5Mpa; 4.0Mpa (can be customized)
Accuracy:1.0%; 1.5%
Turndown Ratio:10:1
Velocity Rang:Liquid: (0.4～7)m/s; Gas: (4.0～60)m/s; Steam: (5.0～70)m/s
Pipe Diameter Range:DN15～DN300 (flange type/clamp type); DN80～DN2000 (Insertion type)
Material:1Cr18Ni9T
Resistance Coefficient:Cd≤2.4
Power Supply:24VDC; 3.6VDC
Protection Class:IP65
Environmental Conditions:Ambient temperature: -40℃～55℃;Relative humidity: ≤85%
Output Signal:Atmospheric pressure: (86～106) KPa
LUGB - X liquid crystal type
- Double-row LCD, 8-digit display
- User-defined small signal cut-off
- 4~20mA two-wire current output, (according to user requirements)
- Online temperature compensation, artificial fixed value density compensation
- 12-24V or 3.6V lithium battery power supply

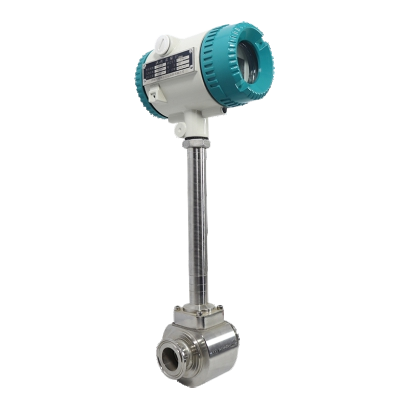

Insertion vortex flow meter
Double-row LCD, 8-digit display
4~20mA two-wire current output, (according to user requirements)
Online temperature, pressure compensation, artificial fixed value density compensation
12-24V or 3.6V lithium battery power supply
User-defined small signal cut-off
Self-contained temperature and pressure compensation, more convenient installation
LUGB - Z temperature and pressure type
- Insertion vortex flow sensor is suitable for the measurement of superheated steam, saturated steam, general gas and liquid above DN200 pipeline; it can be displayed on-site or remotely output, with high cost performance; accuracy: +1.5% +2.5%.
