Online Water quality analyzer-Non-standard customization series
Gas Analyzer Model: SRTC-TVOC2000
Buoy Model: WBXY-FB20A
PH Support

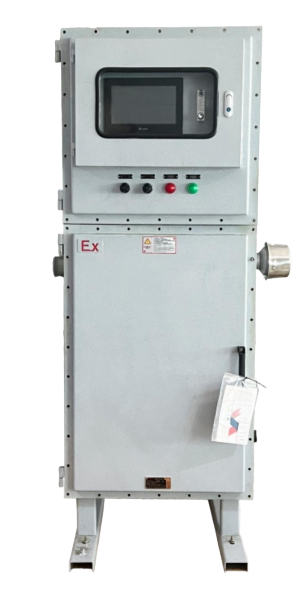

Gas-Analyzer-Model-SRTC-TVOC2000
Detection Method: Infrared principle; TVOC Range: 0-1000-10000-50000ppm and above, customizable; Resolution: 5ppm; Linearity: 5% F.S.; Repeatability: 5% F.S.; Zero Shift: +3% F.5./7 days; Range Shift: 3% F.5./7 days; Temperature Range: -10-50°C; Response Time: Less than 10 seconds; Dimensions: Height 1800 * Width 550 * Length 450; Signal Input: RS485; Power Supply: 220VAC/24VDC; Power: <1000W; Warm-up Time: 30 seconds; Protection Rating: IP65; Sample Gas Flow Rate Range: 2L/min - 0.5L/min; Sample Gas Pressure Range: Current Ambient Pressure 0.1Bar; Sample Gas Humidity Range: <95%RH
PH Support Bracket
Main Features: Convenient mold opening and closing design with a simple twist and turn; free angle adjustment; easy left and right rotation; strong compatibility, compatible with various pH probes; new process design using ABS resin material, suitable for all-day outdoor use.
Buoy Model: WBXY-FB20A
Key Features: 1. The buoy is equipped with an RTU, DTU, gel battery, warning light, charging controller, solar panel, and water quality sensor. 2. Equipped with a 65AH, 100W monocrystalline silicon solar panel (customization available). 3. Supports USB and BLE parameter settings and local historical data export. 4. Built-in 4G full network communication module. 5. The data acquisition terminal is compliant with hydrological and water resources regulations. 6. Online water quality monitoring: dissolved oxygen, conductivity, pH, residual chlorine, turbidity; expandable to include permanganate index (CODMn), cyanobacteria, chlorophyll, and other parameters. Product Functions: 1. Information Acquisition: Automatic data acquisition from water quality sensors. 2. Wireless Communication: Supports 4G full network and NB-IoT communication to adapt to different field needs. 3. Data Storage: Circular storage of monitoring data; data is not lost in case of power failure. 4. Timed Power Supply: Timed controllable power supply to power the sensor. 5. Remote Maintenance: Supports remote parameter setting and remote upgrades. 6. Applicable Environment: The buoy platform should be located at the confluence of water bodies at the monitoring site. Choose a location with suitable water depth and flat underwater terrain based on local water level variations. The platform can operate normally in environments with a horizontal current velocity not exceeding 3.5 m/s and a wind speed not exceeding 20.7 m/s (level 8). The buoy station is not suitable for freezing water bodies in cold regions.
