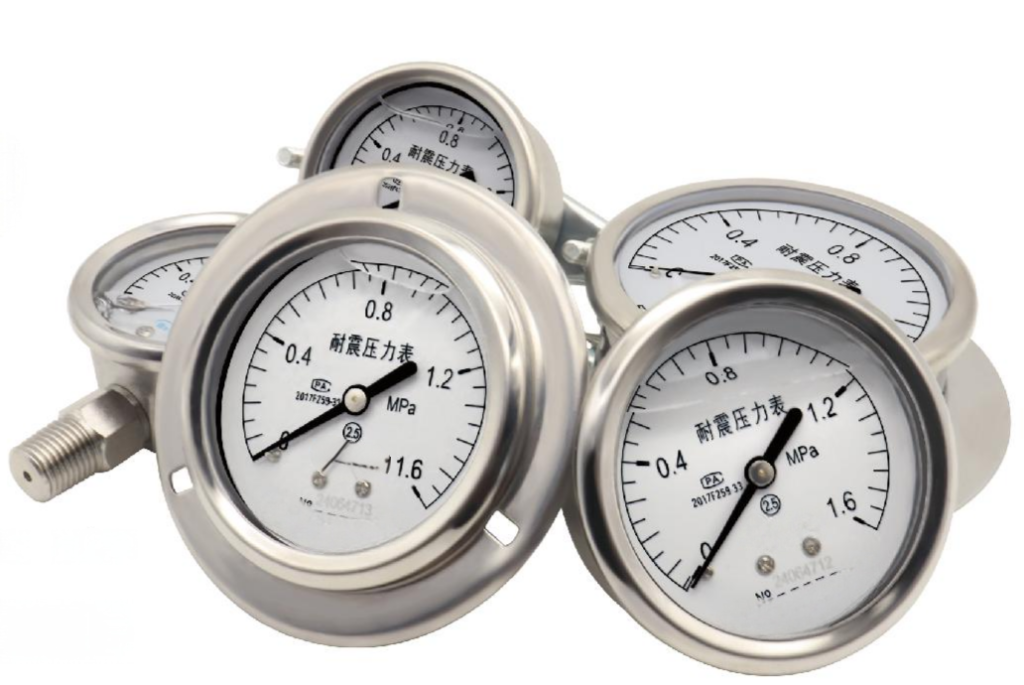

Seismic Pressure Gauge Series
Radial Pressure Gauge
Axial Pressure Gauge
Radial Rear Pressure Gauge
Axial Front Pressure Gauge
Axial Pressure Gauge with Bracket
Product Overview
The pressure gauge relies on measures such as internal flushing damping oil and supporting buffer devices. It has good shock resistance.
Product Applications
This series of seismic pressure gauges aremainly used for pressure detection in metal-lurgy, electric power, petroleum, chemical in-dustry, light industry, machinery and other industrial sectors. It is suit-able for working environments with mechanical vibration and medium pul-sation. It can measure liquids, gases, vapors and other media without
Structural Principles
The main components such as the shell, joints, movements, and elasticelements of the YN series anti-vibration pressure gauge are all made ofstainless steel. The product is both beautiful and corrosion-resistant.The cover and case are connected with a bayonet structure, which providesreliable sealing performance. The structure design is reasonable, theproduction process is reliable, and it has superior anti-vibration per-formance.
Specifications
- Dial Size: ø40; ø50; ø60; ø75; ø100; ø150
- Material: Stainless steel case, stainless steel connectors, copper movement
- Shock Resistance: Yes (glycerin-filled)
- Accuracy Grade: 2.5
- Thread Type: Determined by dial size
- Pressure Range: 0.1Mpa, 0.16Mpa, 0.25Mpa, 0.4Mpa, 0.6Mpa, 1Mpa, 1.6Mpa, 2.5Mpa, 4Mpa, 6Mpa, 10Mpa, 16Mpa, 25Mpa, 40Mpa, 60Mpa, Vacuum, etc.
