Online Water quality analyzer ——ORP
ORP – Wastewater Electrode ORP01
ORP– Glass Electrode ORP02
ORP – PTFE Electrode ORP03
ORP – Digital Electrode ORP485
ORP Wastewater Electrode Model: ORP01
Measuring Range: ±1999mV; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Liquid Contact Material: PPS, Quartz Glass, PTFE; Mounting Interface: Upper and Lower NPT3/4; Electrode Pressure Resistance: 0.3MPa, 0.6MPa; Application Scenarios: Industrial wastewater treatment.

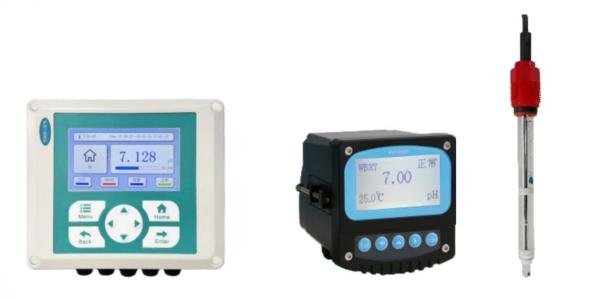

ORP Glass Electrode Model: ORP02
Measuring Range: ±1999mV; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Contact Liquid Material: Quartz Glass; Mounting Interface: PG13.5mm; Electrode Voltage Resistance: 0.3MPa, 0.6MPa; Application Scenarios: Mining and metallurgy, papermaking, petrochemicals, biotechnology, etc.

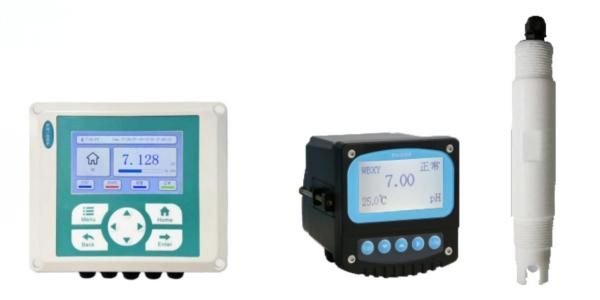

ORP PTFE Electrode Model: ORP03
Measurement Range: ±1999mV; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Liquid Contact Material: Quartz Glass, PTFE; Mounting Interface: Upper and Lower NPT3/4; Electrode Pressure Resistance: 0.3MPa, 0.6MPa; Applications: Industrial wastewater, acid-base neutralization, strong acid and strong alkali conditions, heavily polluted water.

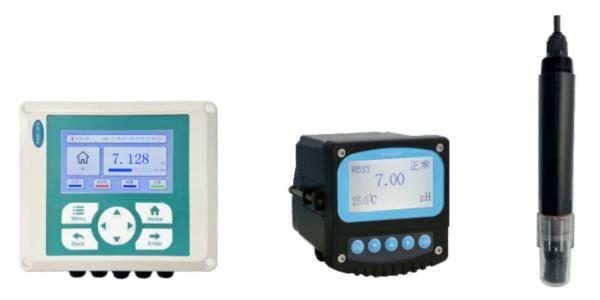

ORP Digital Electrode Model: ORP485
Measuring Range: ±1999mV; Temperature Range: 0-60°C; Power Supply: 12-24VDC; Output Signal: RS485; Liquid Contact Material: PPS, Quartz Glass, PTFE; Mounting Interface: Top and Bottom NPT3/4; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Application Scenarios: Water treatment, surface water, etc.
