Online Water quality analyzer ——PH
PH – Wastewater Electrode PH01
PH – Pure Water Electrode PH02
PH – Glass Electrode PH03
PH – High Temperature Electrode PH04
PH – PTFE Electrode PH06/G
PH – Antimony Electrode PH07
PH – Desulfurization Electrode PH08
PH – Digital Electrode PH485
PH – Explosion-proof Electrode PH20AFB

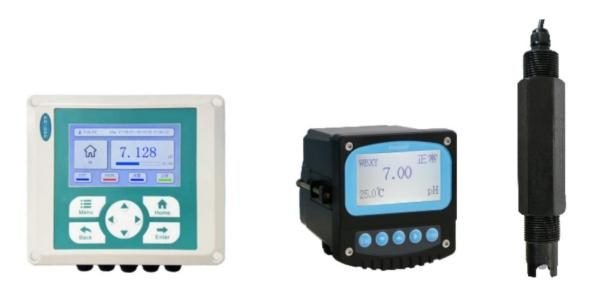

PH - Wastewater Electrode PH01
Measuring Range: 0-14pH; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Liquid Contact Material: PPS, Quartz Glass, PTFE; Installation Interface: Upper and Lower NPT3/4; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Applicable Scenarios: Wastewater, Surface Water, Tap Water

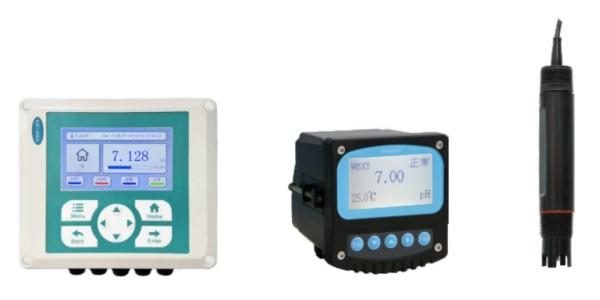

PH - Pure Water Electrode PH02
Measuring Range: 0-14PH; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Contact Liquid Material: PPS, Quartz Glass, PTFE; Installation Interface: Upper and Lower NPT3/4; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Applicable Scenarios: Pure Water

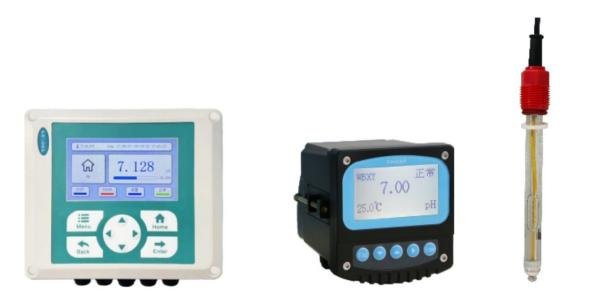

PH - Glass Electrode PH03
Measuring Range: 0-14pH; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Contact Liquid Material: Quartz Glass; Installation Interface: PG13.5mm; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Applicable Scenarios: Wastewater, Swimming Pools, Aquaculture Water, Tap Water, etc.

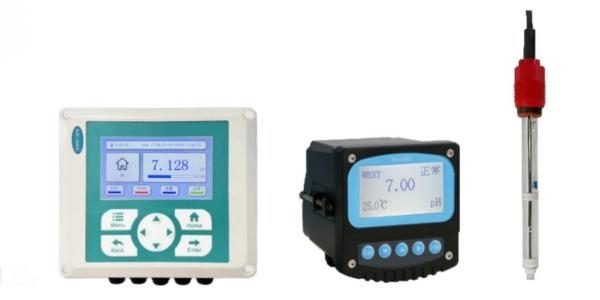

PH - High Temperature Electrode PH04
Measuring Range: 0-14pH; Temperature Range: 0-100°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Liquid Contact Material: Quartz Glass; Installation Interface: PG13.5mm; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Applicable Scenarios: Fermentation tanks, biotechnology, pharmaceutical industry, food processing, starch slurry, etc.

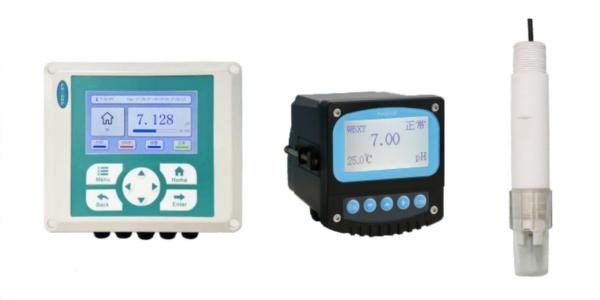

PH - PTFE Electrode PH06/G
Measuring Range: 0-14pH; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Contact Liquid Material: Quartz Glass, PTFE; Installation Interface: Upper and Lower NPT3/4; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Applicable Scenarios: Industrial wastewater, acid-base neutralization, strong acid and strong alkali conditions, heavily polluted water

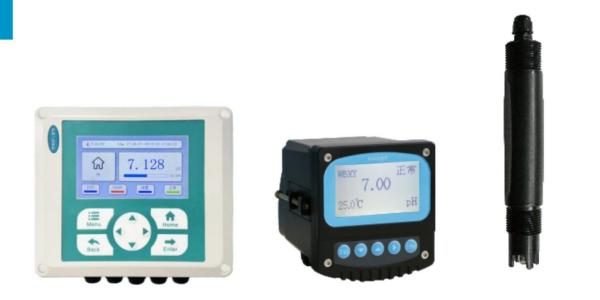

PH - Antimony Electrode PH07
Measuring Range: 0-14pH; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Liquid Contact Material: PPS, Quartz Glass, PTFE; Installation Interface: Upper and Lower NPT3/4; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Applicable Scenarios: For fluoride-containing wastewater

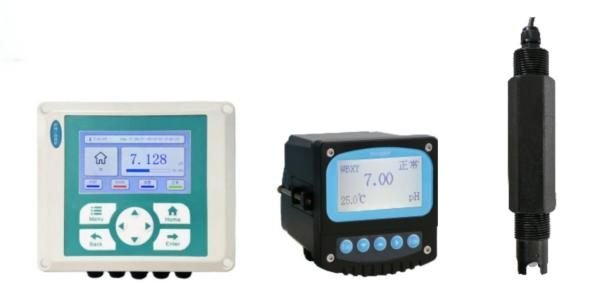

PH - Desulfurization Electrode PH08
Measuring Range: 0-14pH; Temperature Range: 0-100°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Liquid Contact Material: PPS, Quartz Glass, PTFE; Installation Interface: Upper and Lower NPT3/4; Electrode Pressure Resistance: 0.3Mpa, 0.6Mpa; Applicable Scenarios: Suitable for desulfurization applications.

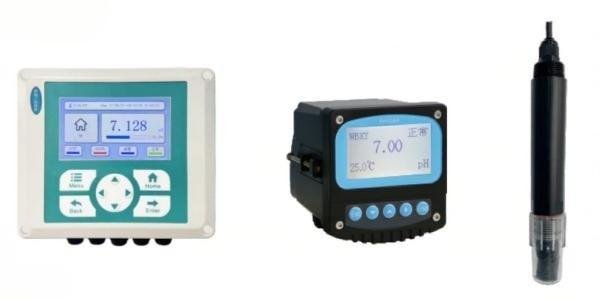

PH - Digital Electrode PH485
Measuring Range: 0-14pH; Temperature Range: 0-60°C; Power Supply: 12-24VDC; Output Signal: RS485; Contact Liquid Material: PPS, Quartz Glass, PTFE; Installation Interface: Top and Bottom NPT3/4; Electrode Pressure Resistance: 0.3Mpa; Applicable Scenarios: Drinking water, swimming pool water, surface water, pH compensation for residual chlorine, etc.

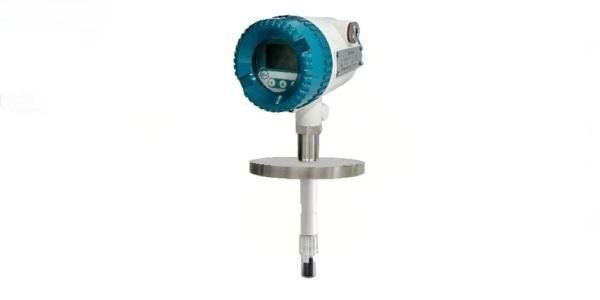

PH - Explosion-proof Electrode PH20AFB
Measuring Range: 0-14pH; Temperature Range: 0-60°C; Temperature Compensation Type: NTC2252, NTC10K, PT1000, PT100; Power Supply Electrical: 12-24VDC; Output Signal: 2 channels 4-20mA, RS485; Liquid Contact Material: 304, PPS, Quartz Glass, PTFE; Mounting Interface: NPT3/4; Explosion-proof Mark: ExdIICT6Gb; ExialICT6Ga; Electrode Withstand Voltage: 0.3Mpa, 0.6Mpa; Applicable Scenarios: All-in-one display, explosion-proof environments, chemical industry.
