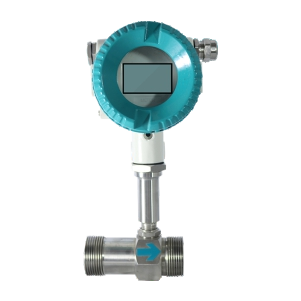

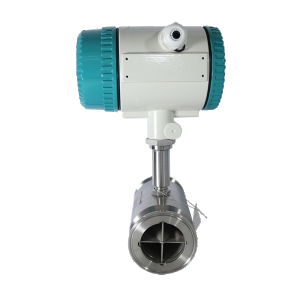

LWGY Series Liquid Turbine Flow Meter
Product Description
Liquid turbine flow meter is a new generation of turbine flow meter with the characteristics of simple s truc ture, light weight, high prec i s ion, good repea t abi l it y, sens iti ve response, convenient installation and maintenance, etc. In the closed pipeline, it has no corrosion effect with stainless steel 1Cc18Ni8Ti, 2Cr13 and corundum AI3O3 cemented carbide, and has no fibers, particles and other impurities. The kinematic viscosity at working temperature is less than 5×10-6m2/s. For liquids with kinematic viscosity greater than 5×10 The liquid of – 6m2/s can be used after real-liquid calibration of the flow meter. If it is matched with a display instrument with spec ial func tions , it can al so carry out quantitative control, and an excess alarm light is an ideal instrument for flow meter and energy saving.
Features
- High accuracy, generally up to ±1%R, ±0.5%R, high precision type up to ±0.2%R;
- Good repeatability, short-term repeatability can reach 0.05%~0.2%, the preferred flow meter in trade settlement；
- Output pulse frequency signal, suitable for total measurement and computer connection; no zero drift, strong anti-interference ability；
- Strong signal resolution, wide range, compact and lightweight structure, easy installation and maintenance, and large fluid capacity;
Technical Parameter
- Executive standard:Turbine flow sensor (JB/T9246-1999)
- Connection method:Thread, clamp, flange, clip-on
Accuracy class:±1%R, ±0.5%R, ±0.2%R (customized)
Sensor material:304, 316 stainless steel, etc.
Conditions of Use Signal output function:Medium temperature: -20℃～+120℃;Ambient temperature: -20℃～+60℃; Relative humidity: 5%-90%;Atmospheric pressure: 86Kpa～106Kpa
Communication output function:Pulse signal, 4-20mA signa
Working power:RS485 communication, HART protocol, etc.
Signal line interface Explosion-proof grade:External power supply: 24VDC±15%, ripple ≤±5%,suitable for 4-20mA output, pulse output, RS485, etc. Internal power supply: 1 set of 3.6V10AH lithium battery, the battery voltage can work normally when the battery voltage is 2.0-3.0V
Protection class: Basic type: Hausman connector or built-in three-core cable; Explosion-proof type, Internal thread M20*1.5
Executive standard:Exd II CT6 Gb
Connection method:IP65 or higher can be customized
