Ultrasonic Flow Meter
Product Description
Ultrasonic flow meters are instruments that measure flow by detecting the effect of fluid flow on an ultrasonic beam (or ultrasonic pulse). It adopts advanced multi-pulse technology, signal digital processing technology and error correction technology, which makes the flow meter more adaptable to the environment of the industrial site, and the measurement is more convenient, economical and accurate, especially in large-caliber flow measurement. It is one of the rapidly growing class of flow meters.
Application
For petroleum
For chemical
For metallurgy
For electric power
For water supply and drainage and other fields
Features
The unique signal digital processing technology makes the measuring signal of the instrument more stable, the anti-interference ability is strong, and the measurement is more accurate.
No mechanical transmission parts are not easy to be damaged, maintenance-free, and long service life.
The circuit is more optimized and the integration is high; the power consumption is low and the reliability is high.
Intelligent s tandard s ignal output, friendly man-machine interface, and a variety of secondary signal outputs for your choice.

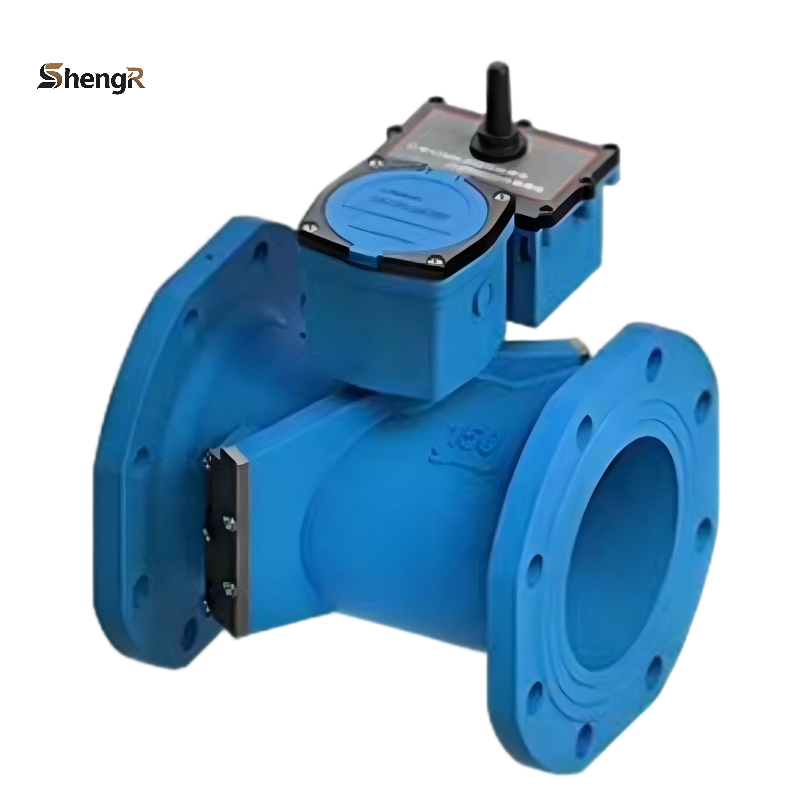

Pipe section type small pipe diameter measurement is economical and convenient, with high measurement accuracy.
Parameters
Measurement accuracy: better than 1%.
Repeatability: better than 0.2%
Working power: 90~230VAC (built-in Ni-MH rechargeable battery, can work continuously for 10 hours after sufficient)

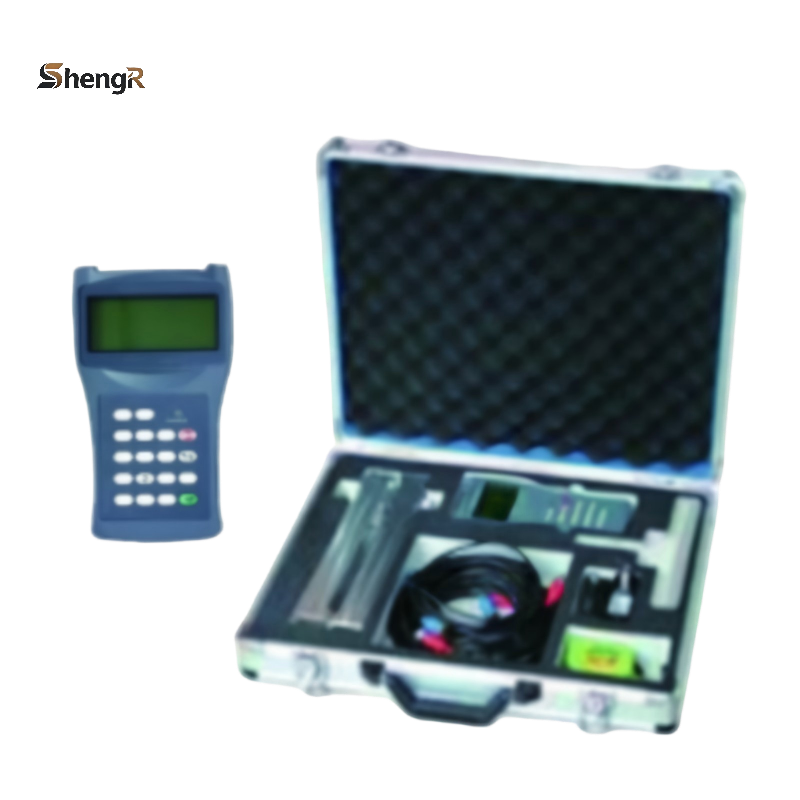

Installation method: external installation, simple and convenient operation
Display: display instantaneous flow, cumulative flow, flow rate, signal status
Signal output: RS323, MODBUS
Data storage: built-in data logger can record time, cumulative flow,instantaneous flow, signal status, working time, can import data into computer
Other functions: self-diagnosis function, prompting the current working state is normal or not.
